Centralized web server control AE-C400 (X)/EW-C50 (X)

Enhanced visibility, easy operation and optimal comfort. All under one control

Technical sheet

AE-C400 (X)/EW-C50 (X)

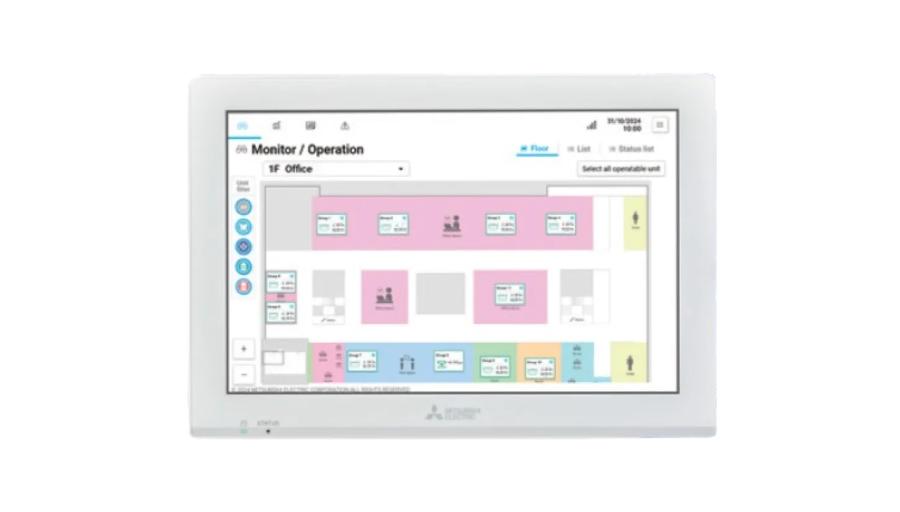

Mounted with a color LCD touch panel with excellent visibility and operation.

The AE-C400 (X) features a 12.1-inch color LCD display that provides excellent visibility. It features a flat-glass capacitive touch screen panel for fast and accurate response.

Air conditioners can be monitored and managed remotely.

Air conditioners can be monitored and managed remotely from a Web browser* on a personal computer by connecting it to the Internet via a modem or VPN router with a LAN connection. Up to 2,000 indoor units can be controlled from the Web browser.

* For Windows, Microsoft® Edge or Google Chrome is required. For Macintosh, Safari 7 is required. Windows and Microsoft® Edge are registered trademarks of Microsoft Corporation in the United States and other countries.

Up to 400 indoor units can be controlled.

AE-C400 (X)/EW-C50 (X) can control up to 50 indoor units.

By connecting other AE-C400 (X)/EW-C50 (X), up to 40 indoor units can be controlled.

Enables energy management of air conditioners.

The energy consumption and running time of air conditioners are displayed on the AE-C400 (X)/EW-C50 (X). They can be used to check air conditioner usage and the effect of energy-saving control.

USB can be installed directly into the side slot. Data can be collected easily.

AE-C200 (X)

EW-C50 (X)

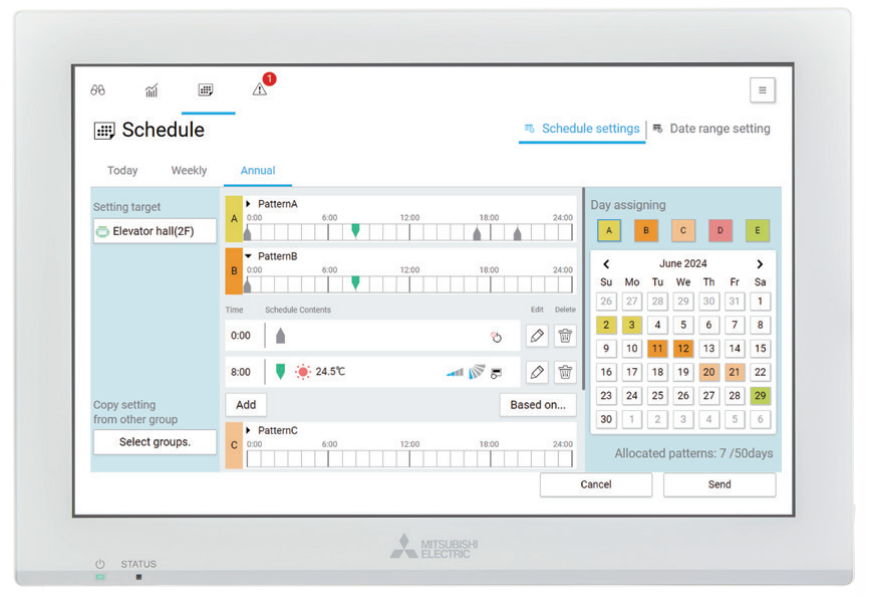

Detailed settings of airflow direction and speed can be recorded in annual and weekly programs.

In addition to annual scheduling, five weekly scheduling screens can be set per season, specifying start and stop times, temperature, direction, and airflow speed in each schedule.

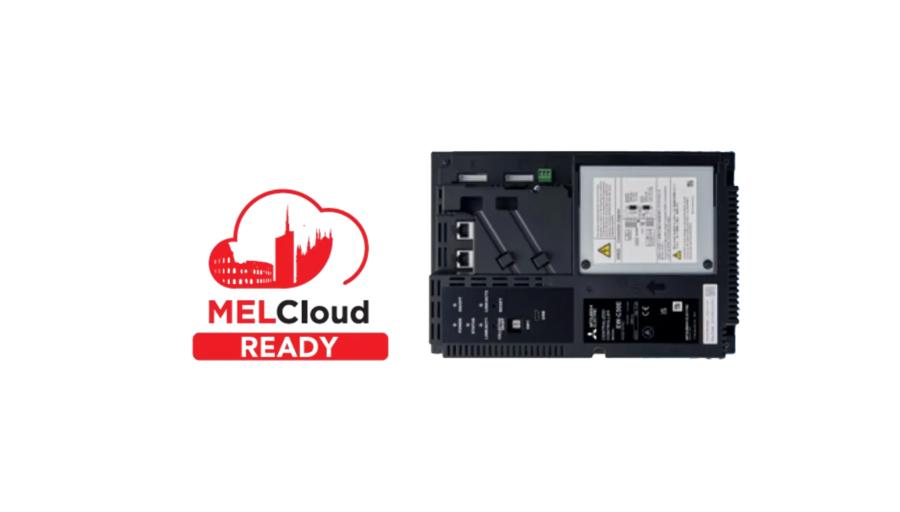

Each VRF/HVRF system is connectable to the cloud.

Weekly and annual scheduling

The scheduling function simplifies centralized control by allowing you to set air conditioning programs according to the season. You can create daily, weekly and yearly schedules to adjust the temperature effortlessly. You can set up to 24 different events per day to perfectly suit your needs.

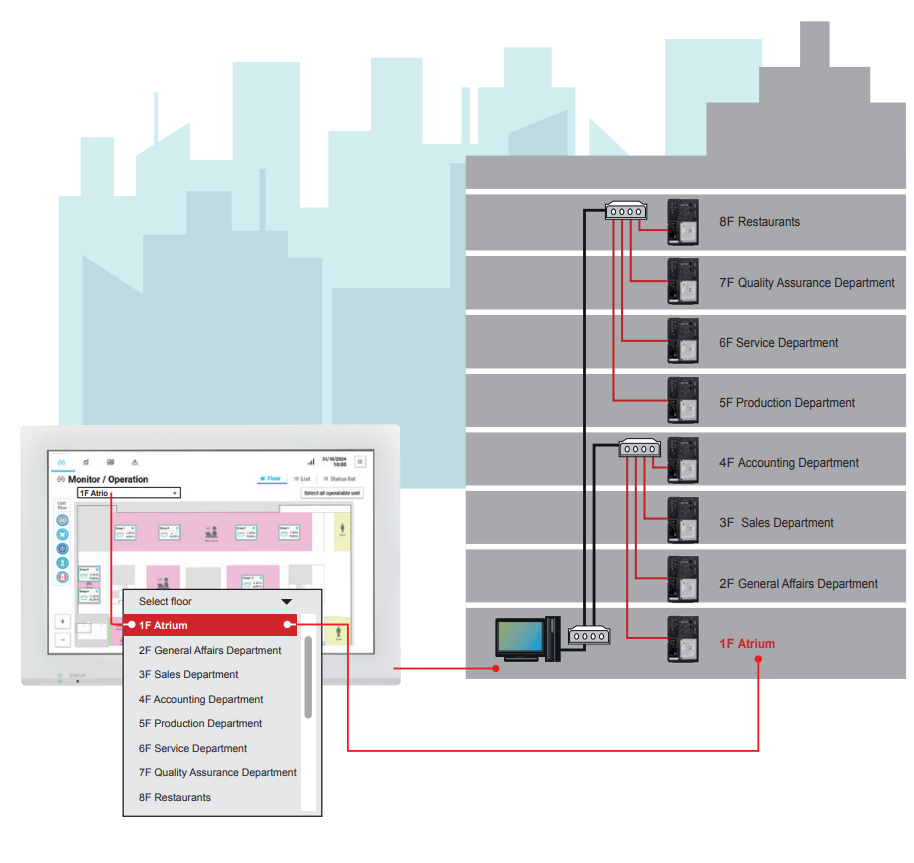

System configuration plant scheme

An AE-C400 (X)/EW-C50(X) can control up to 50 indoor units. By connecting additional AE-C400 (X) or EW-C50 (X), up to 400 indoor units can be controlled.

BACnet ® CONNECTION (BACnet ® LICENSE REQUIRED)

Control systems can be connected to the centralized monitoring unit via BACnet®

When indoor units are monitored and managed by the centralized monitoring unit, AE-C400 (X) /EW-C50 (X) can be connected to the centralized monitoring unit through the open BACnet® protocol by registering the license (BACnet® connection) in the control systems.

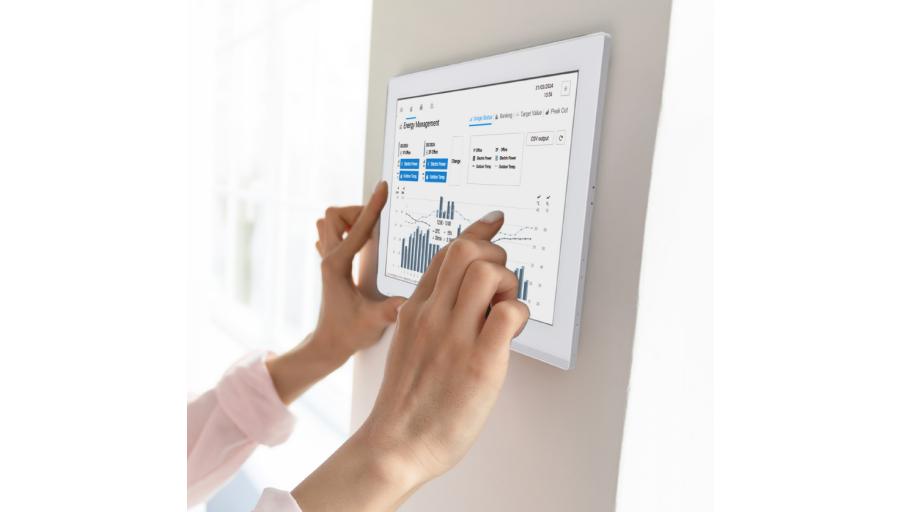

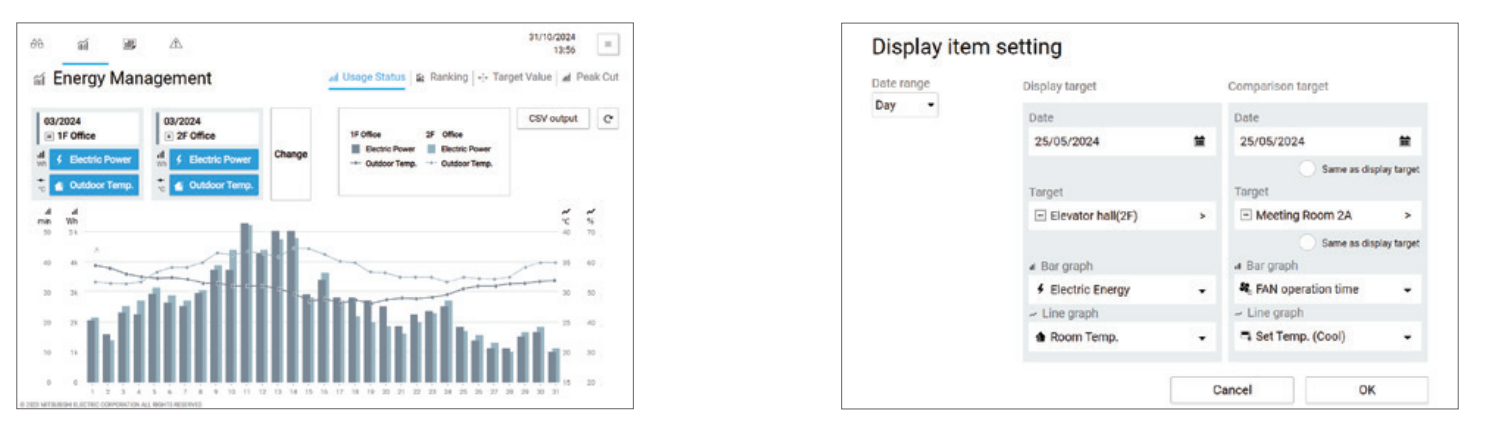

Display of power consumption on the AE-C400 (X) display

Energy consumption and running time of air conditioners can be clearly displayed.

Accessories

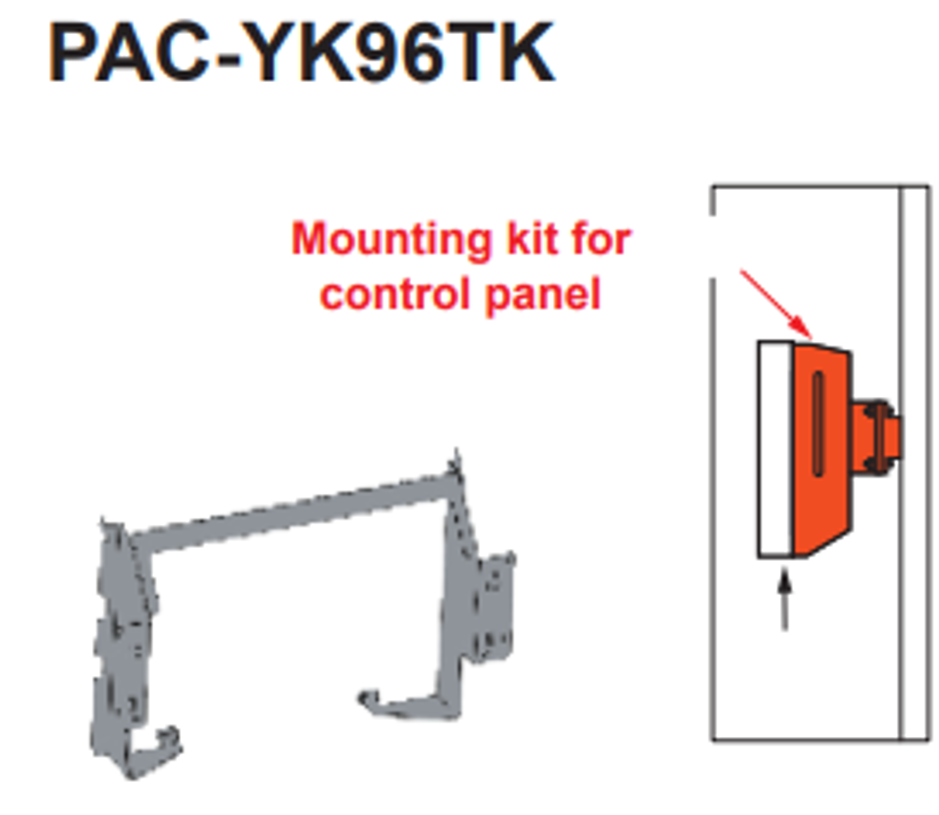

Mounting Kit for PAC-YK96TK Control Panel

The AE-C400 (X) can be installed in a control panel using the bracket and DIN rail attachments contained in the mounting kit.

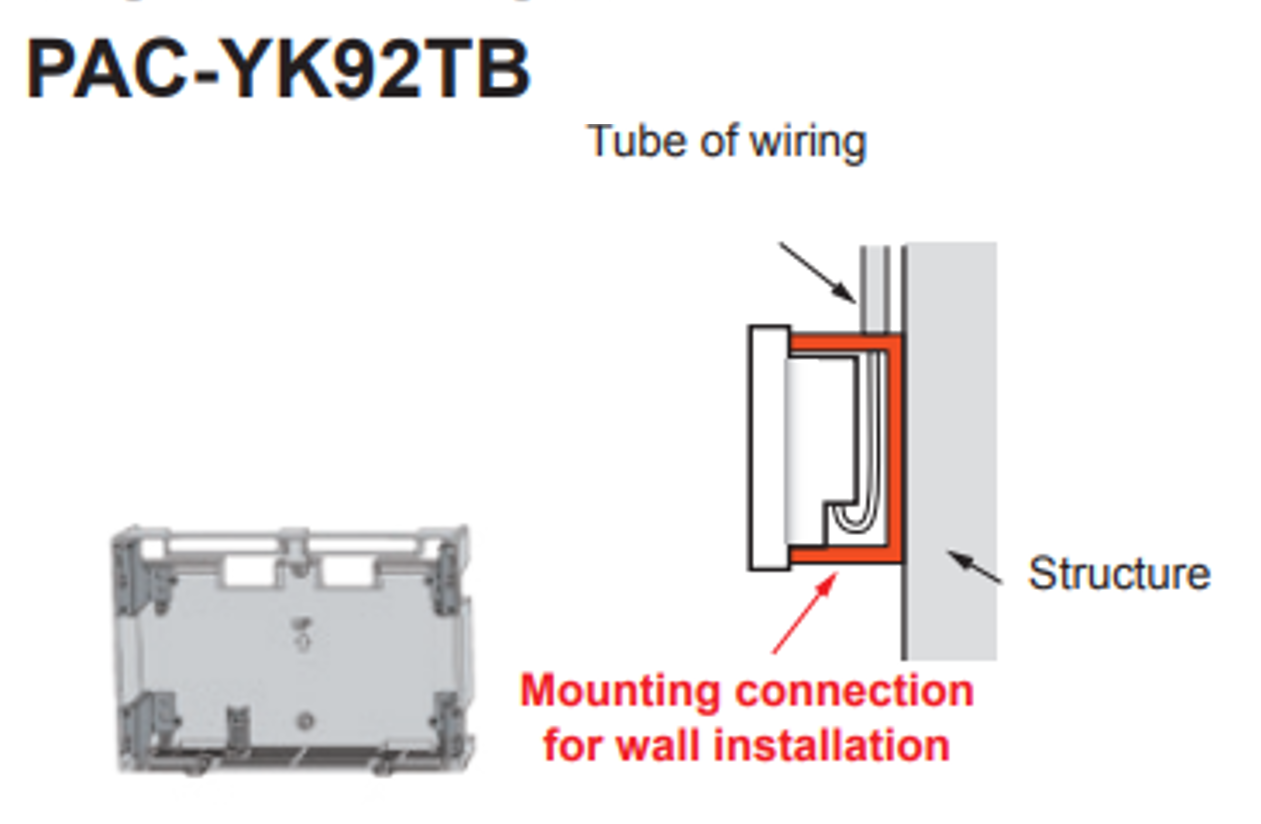

PAC-YK92TB Wall Mounting Attachment

The AE-C400 (X) can be installed on a non-drillable wall (e.g., a concrete wall) using a mounting attachment.

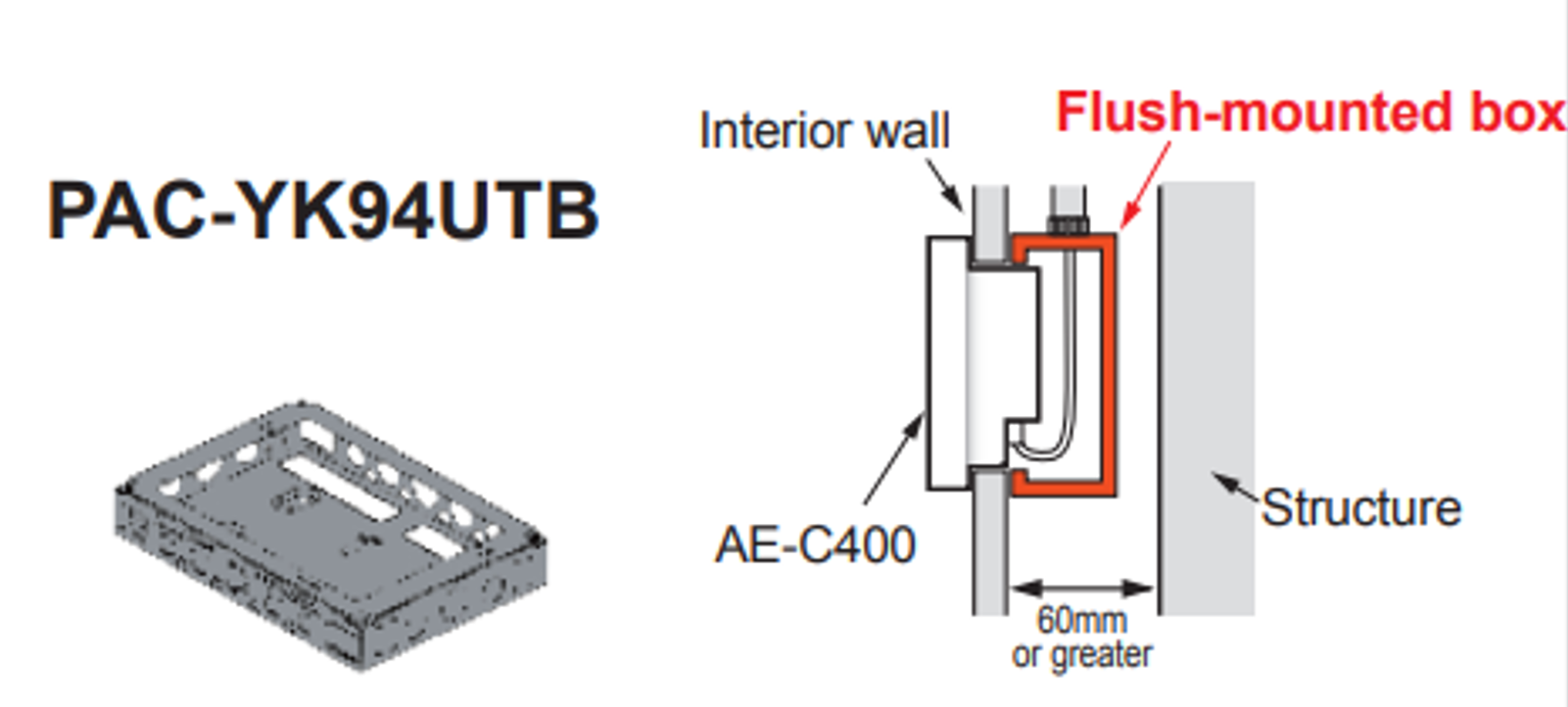

Recessed box for electrical circuit PAC-YK94UTB

The AE-C400 (X) can be installed inside the wall through the use of a recessed electrical circuit box.
